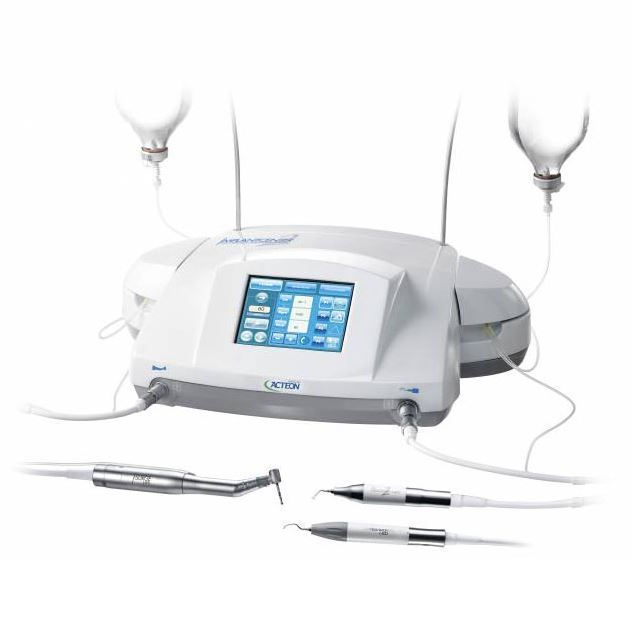

LED IMPLANT CENTRE 2

Stock Code:
ACF27203
INDENT

Description

THE ALLIANCE OF TECHNOLOGIES FOR SAFE AND ATRAUMATIC BONE SURGERIES

The alliance of the most advanced ultrasonic and rotary technologies ensures total independence in increasingly diverse clinical areas like: Periodontics, endodontics, prophylaxis, restorative, pre-implant, implant surgeries.

Features & Benefits:

- Highly reliable I-SURGE LED motor with its high torque (6Ncm) and wide speed range (100-40000Rpm).
- Boosted, the Piezotome® LED handpiece contains 6 ceramic rings for faster and secure surgeries.
- Access to all dental treatments with the NEWTRON® LED handpiece.
- Patented technology for more preservation, efficacy and comfort.
- 3 functioning modes: - I-SURGE™ for implant surgeries (rotating motor) - Piezotome® for pre-implant ultrasonic bone surgery - NEWTRON® for all dental ultrasonic treatments.
- Security: non active on soft tissue (selective cut).
- Bone preservation thanks to tips highly precise cut, linear vibrations, controlled and regular amplitude.
- Numerous robust tips strengthen by surface treatment to extend clinical applications.
- With the NEWTRON® LED handpiece, get access to over 80 different dental care tips, with exclusive designs, alloys and coatings.
- Automatic frequency adjustment for maximal performance of each tip. Real-time power regulation for constant performances and effortless cut.
- Large multi-functional progressive foot-switch.
- Autoclavable or single use irrigation lines available.
- Regular irrigation flow thanks to the specific pump/cassette system.
- Long-lasting accessories (wrench, tips, handpiece).
- Comfort for both patient and practitioner with secure and effortless cut, better tactile sense and reduced post-operative pain.

Technical Specifications:

Supply voltage - 100 VAC – 230 VAC – 50 Hz / 60 Hz
Equipment classification - Class I, BF type
Ultrasonic frequency - 28 KHz to 36 KHz

Dimensions - (W x H x D and weight)
Unit = 472.9 x 149.5 x 339.9 mm ; 5 Kg
Multi-function foot switch = 311 x 181 x 209 mm ; 3.5 Kg

Peristaltic pump flow rate:
Piezotome & I-Surge mode = 10 to 120 ml/min
Newtron mode = 10 to 40 ml/min
